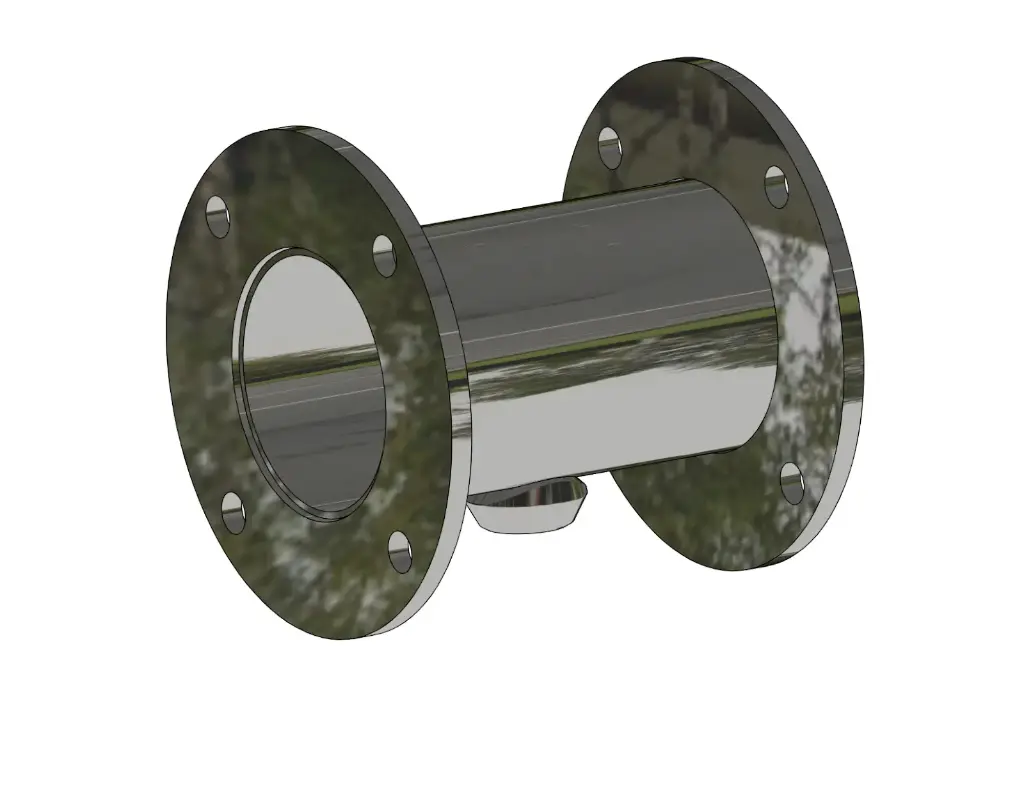

Low Point Bleed Pipe Spools

• Material 304 Stainless Steel 316 Stainless Steel
• Diameter 25NB 40NB 50NB 65NB 80NB 90NB 100NB 125NB 150NB 200NB 250NB 300NB 350NB 400NB 450NB 500NB 550NB 600NB 650NB 700NB 750NB 800NB
• Pipe Schedule Schedule 10 Schedule 40

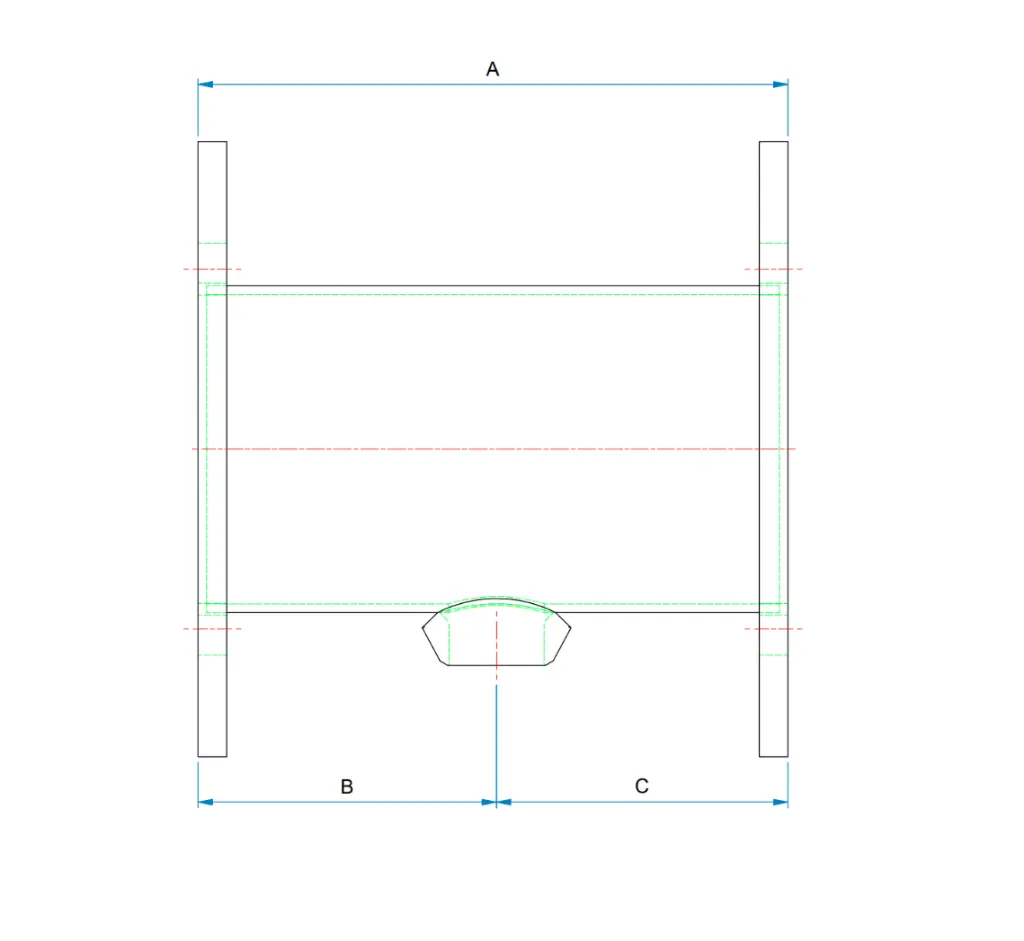

• Dimension A maximum pipe length is 6000mm plus the centreline measurement of the fitting
• Dimension B maximum length from sealling face to thrust flange is 350mm
• Dimension C maximum length from sealling face to thrust flange is 350mm
• Pipe end Connection End A AS2129 Table D FF SO AS2129 Table E FF SO AS4087 PN16 FF SO AS4087 PN16 RF SO AS4087 PN21 FF SO AS4087 PN35 FF SO EN1092 PN10 RF SO EN1092 PN16 RF SO ANSI Class 150 RF SO Plain Pipe End (no green) Field Weld Connection (includes +150mm green) Roll Groove Connection (50 -75mm stub with roll groove connection DN25 to DN300)
• Pipe end Connection End B AS2129 Table D FF SO AS2129 Table E FF SO AS4087 PN16 FF SO AS4087 PN16 RF SO AS4087 PN21 FF SO AS4087 PN35 FF SO EN1092 PN10 RF SO EN1092 PN16 RF SO ANSI Class 150 RF SO Plain Pipe End (no green) Field Weld Connection (includes +150mm green) Roll Groove Connection (50 -75mm stub with roll groove connection DN25 to DN300)
• Bleed point Diameter DN15 BSP DN15 NPT DN20 BSP DN25 BSP DN32 BSP DN40 BSP DN50 BSP
